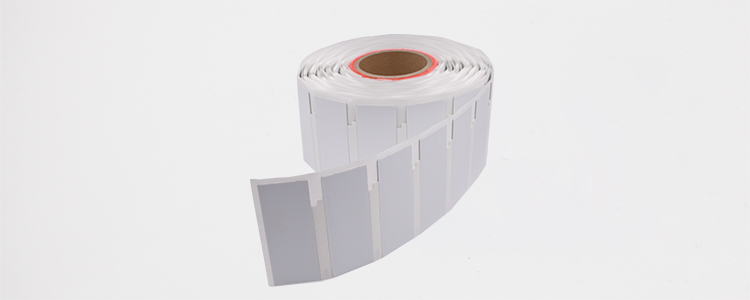

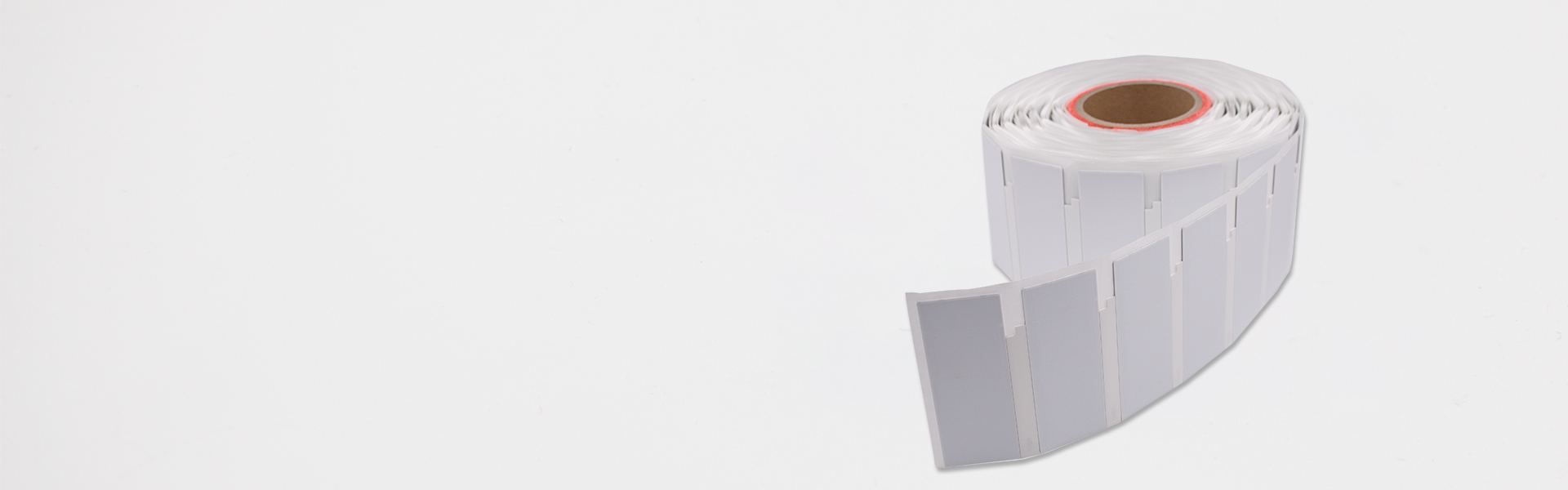

Physical Features Mdoel RCO7064
Material PET/Aluminum Foil/Foam
Dimensions 100 x 40 x 1 mm(L x H x W)
Working Temp -40~+85℃
Survive Temp

23±3

Survival  Humidity:

50±15 %RH

IP Rating IP68,test for 5 hours at 1m deep water
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type NXP Ucode 9XM
Memory ① EPC- 128 bits; User - 752 bits; TID - 96 bits
② EPC- 256 bits; User - 624 bits; TID - 96 bits
③ EPC- 496 bits; User - 384 bits; TID - 96 bits
Read Range(Fixed Reader) FCC: 14.5 m, on metal
Read Range(Handheld Reader) FCC: 8.5 m, on metal
Other Features Data Storage > 20 years
Re-write 100000 times
Installation Adhesive
Support Printer SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.
Package Reel core inner diameter: 76.2 mm / 3" ,
Outside diameter < 220 mm / 8.7", 300pcs/roll.
Application Metallic container tracking | Equipment& device tracking
Warehouse shelf Management  | IT asset tracking, etc.
Application
Related industries
Industry 4.0
Radio frequency identification technology (RFID) currently plays an important role in asset management. It provides asset life cycle visibility, bringing real-time asset location information, error-free data capture, and ultimately enabling efficient asset management processes. Automated management of assets will save your organization labor, time and money.
Details
01 / 03
HealthCare Control
As the scale of hospitals and the scope of diagnosis and treatment continue to expand, in medical management centers, many hospitals still use traditional manual record management methods to manage consumables and surgical gowns. There are many types of consumables and confusing names, which can easily lead to false claims and missing records. Problems such as registration errors and difficulty in tracing items lead to heavy workloads for nurses, cumbersome work processes, and backlogs and shortages of valuable consumables, resulting in increased management costs. The core of smart medical care is "patient-oriented". It uses advanced Internet of Things technology and RFID to realize the interaction between patients and medical staff, medical institutions, and medical equipment. It gradually reaches informatization and realizes the control of every step in the operation. Real-time monitoring of data, including drug supervision, disease diagnosis and treatment, equipment management, etc.
Details
02 / 03
Asset Tracking
In modern warehouse storage, it is no longer enough to complete simple batch processing of goods in and out. It is crucial to clearly record the type, quantity, production attributes, stacking position and other information of goods in the warehouse. However, traditional asset management methods such as barcodes have gradually exposed defects such as poor resistance to dirt, small data storage capacity, short reading intervals, and inability to read in batches over long-term use, which has brought inconvenience to the inventory of fixed materials. In order to solve the problems of traditional asset management methods, RFID intelligent asset management systems came into being. RFID tags have the characteristics of high identification accuracy, reliable performance, large amount of stored information, and resistance to oil and sewage washing. They are especially suitable for automatic identification needs in industrial environments. , by using RFID tags to replace barcodes and other methods of identifying goods, the RFID intelligent asset management solution realizes automated management of warehousing, thereby realizing automatic collection, automatic processing and information reporting of goods information.
Details
03 / 03
