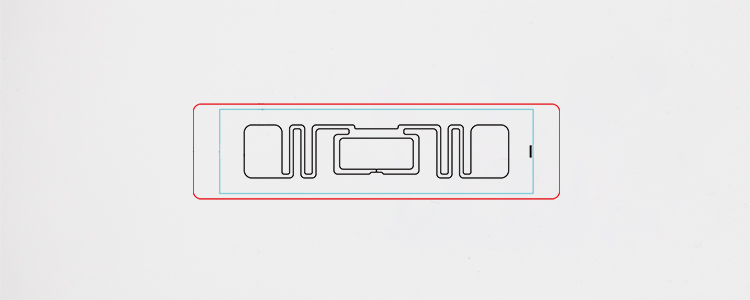

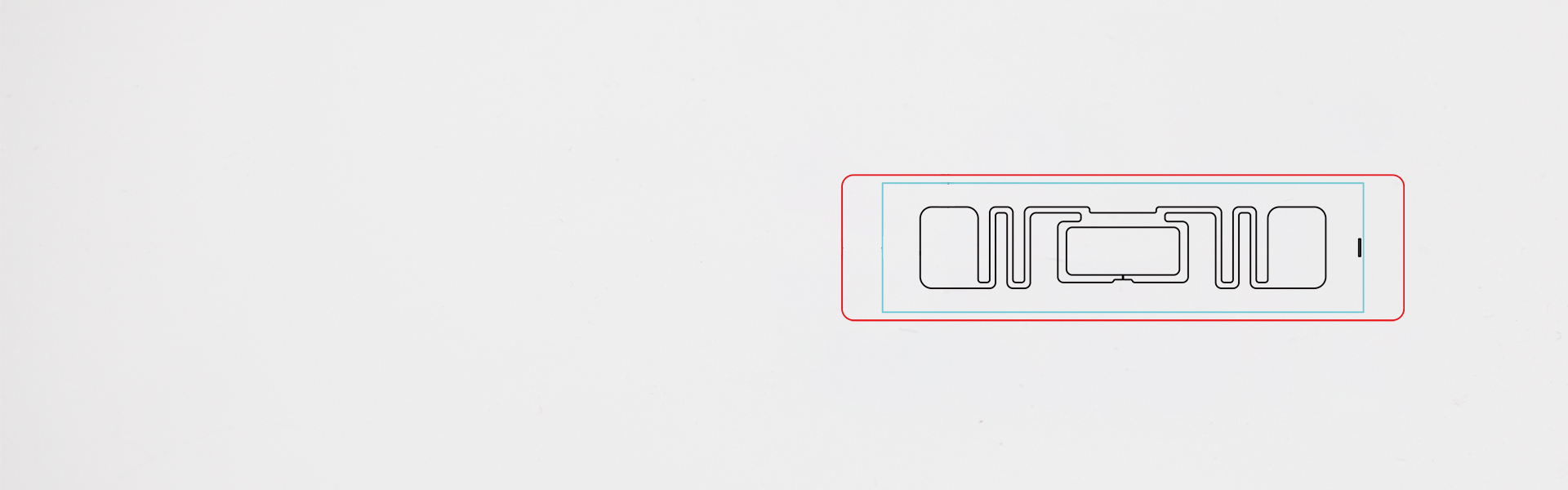

Physical Features Model RC5082
Label Size 97x25 mm(customized)
Material PET/PP
Working Temp -40~+85℃
Storage  Temp 23±3
Storage  Humidity: 50±15 %RH
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type FM13UF0051E
Memory User -32 bits; EPC - 160 bits; TID - 96 bits
Read Range(Fixed Reader) 14m, on plastics; 8.0m, on wood
Read Range(Fixed Reader) 9.0m, on plastics; 7.0m, on wood
Other Features Data Storage > 10 years
Re-write 100000 times
Customization Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Package Reel core inner dimension: 76.2mm / 3(in), Outside diameter < 220 mm / 8.7(in),
1000-5000pcs/roll, 4 rolls /carton
Application Liquid container management | Cosmetic management
Wine management | Pharmaceutical management, etc.
Application
Related industries
Smart Retail
Due to the rapid expansion, distribution and unique product management strategies of retail enterprises, they generally present logistics distribution such as multiple varieties of goods, small batches, high delivery frequency, multiple delivery points, fast delivery requirements and the need for complete information system support. These characteristics, make the entire logistics activities more complex, and the process of economic globalization has greatly extended the distribution of the supply chain in space. Global procurement, global sales, global services, multi-base collaborative production, etc., have extended the supply chain to a global scale. Correspondingly Logistics and distribution must also be carried out globally, and the complexity of logistics in space is increasing day by day. The vast extension of logistics systems and the complexity of logistics system planning make it a field that only experts can get involved in. Due to the unique identification method and technical characteristics of RFID, it can bring huge benefits to retailers, suppliers and customers; it enables the supply chain system to track the movement of goods more easily and automatically in an efficient way, allowing items to be realized True automated management.In addition, RFID also provides the retail industry with advanced and convenient data collection methods, convenient customer transactions, efficient operating methods, fast and insightful decision-making methods, and other benefits that barcode technology cannot replace. RFID applications in the retail industry mainly focus on five aspects: supply chain management, inventory management, in-store merchandise management, customer relationship management and security management.
Details
01 / 03
Industry 4.0
Radio frequency identification technology (RFID) currently plays an important role in asset management. It provides asset life cycle visibility, bringing real-time asset location information, error-free data capture, and ultimately enabling efficient asset management processes. Automated management of assets will save your organization labor, time and money.
Details
02 / 03
Asset Tracking
In modern warehouse storage, it is no longer enough to complete simple batch processing of goods in and out. It is crucial to clearly record the type, quantity, production attributes, stacking position and other information of goods in the warehouse. However, traditional asset management methods such as barcodes have gradually exposed defects such as poor resistance to dirt, small data storage capacity, short reading intervals, and inability to read in batches over long-term use, which has brought inconvenience to the inventory of fixed materials. In order to solve the problems of traditional asset management methods, RFID intelligent asset management systems came into being. RFID tags have the characteristics of high identification accuracy, reliable performance, large amount of stored information, and resistance to oil and sewage washing. They are especially suitable for automatic identification needs in industrial environments. , by using RFID tags to replace barcodes and other methods of identifying goods, the RFID intelligent asset management solution realizes automated management of warehousing, thereby realizing automatic collection, automatic processing and information reporting of goods information.
Details
03 / 03
