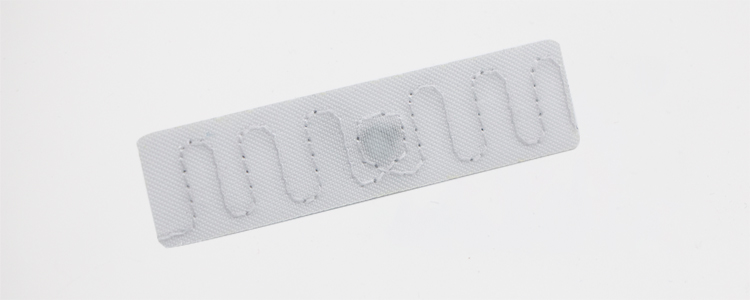

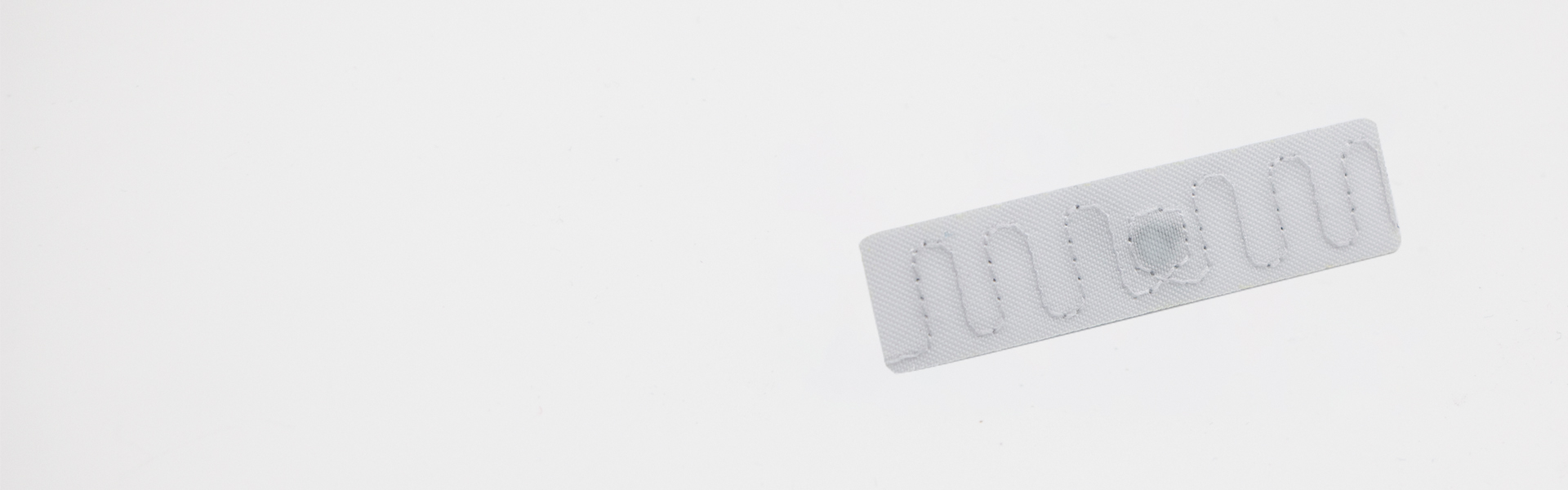

Physical Features: Mdoel Aqua LA305
Material Polyester
Length x Width 58 x 15 mm (2.3 x 0.6 in)
Thickness

1.8 mm(0.07 in) on chip location only,

Rest of tag is 0.75 mm(0.03 in)

Weight 0.5 g
RFID Features: RFID  Standard EPC C1G2 (ISO18000-6C)
Frequency 860-960 MHz(worldwide)
Chip Type Impinj Monza 730
Memory  User -N/A; EPC - 128 bits; TID - 48 bits
Data Storage > 20 years
Re-write 100,000 times
Read Range(Fixed Reader) >14.5 m(48 ft)
Read Range(Handheld Reader) > 9.5 m(31 ft)
Other Features: Installation Sew:Sewn inside the hem or pouch
Heat-sealing:Heat-seal the tag onto the textile at 210°C
and 0.6-0.8 MPa for 20 seconds
Warranty 200 washing cycles or 3 years, whichever comes first
Washing Method Laundry, Dry cleaning
Water Extraction pressure 60 bars
 Chemical Resistance Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali
Washing Temperature 90°C (194°F)/15 minutes
Pre-drying in Tumble 180°C (356°F)/30 minutes
Ironing Tempereature 185°C (365°F)/10 seconds
Sterilization Tempereature 135°℃ (275°F)/20 minutes
Humidity/ Temperature-Operating -20~+85℃(-68~185℉)/  8-95%RH
Personalization Serial number, LOGO printing, Encoding, Antenna design.etc
Applications Industrial washing/Management of uniforms
Medical apparel management/Military clothing management
Application
Related industries
Asset Tracking
In modern warehouse storage, it is no longer enough to complete simple batch processing of goods in and out. It is crucial to clearly record the type, quantity, production attributes, stacking position and other information of goods in the warehouse. However, traditional asset management methods such as barcodes have gradually exposed defects such as poor resistance to dirt, small data storage capacity, short reading intervals, and inability to read in batches over long-term use, which has brought inconvenience to the inventory of fixed materials. In order to solve the problems of traditional asset management methods, RFID intelligent asset management systems came into being. RFID tags have the characteristics of high identification accuracy, reliable performance, large amount of stored information, and resistance to oil and sewage washing. They are especially suitable for automatic identification needs in industrial environments. , by using RFID tags to replace barcodes and other methods of identifying goods, the RFID intelligent asset management solution realizes automated management of warehousing, thereby realizing automatic collection, automatic processing and information reporting of goods information.
Details
01 / 02
Smart Washing
Give each piece of linen a unique RFID digital identity, and use industry-leading data collection equipment to collect status information of linen in every handover link and every washing process in real time; rely on powerful data analysis tools to achieve full monitoring of linen Process and full life cycle management can help operators improve linen circulation efficiency, reduce labor costs, and improve customer satisfaction.
