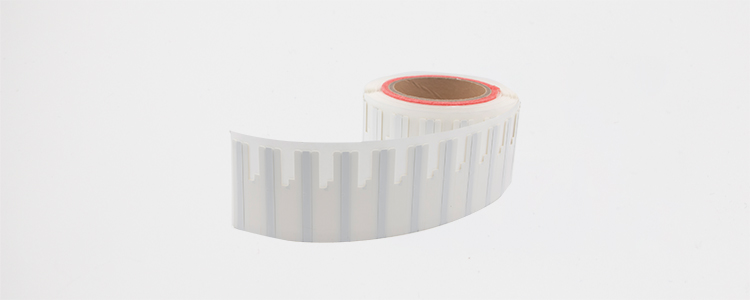

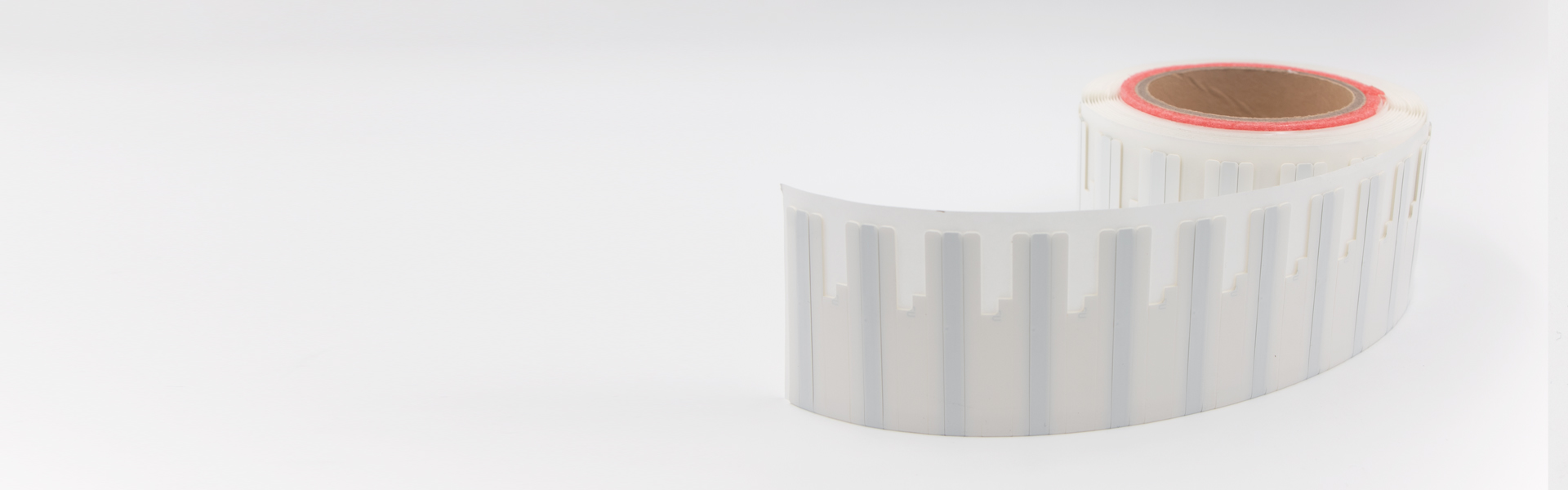

Physical Features Mdoel RCO7018
Material PET/Aluminum Foil/Foam
Dimensions 64 x 6 x 1 mm(L x W x T)
Working Temp -40~+85℃
Survive Temp 23±3
Survival Humidity 50±15 %RH
IP Rating IP68,test for 5 hours at 1m deep water
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type NXP Ucode 8
Memory User -N/A; EPC - 128 bits; TID - 96 bits
Read Range(Fixed Reader FCC) 4.0 m, on metal; 4.5 m, on liquid
Read Range(Fixed Reader ETSI) 3.5 m, on metal; 6.5 m, on liquid
Other Features Data Storage > 10 years
Re-write 100000 times
Installation Adhesive
Support Printer SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization Logo, parcoge/QR coae, number printing, encoding, antenna design, etc.
Package Reel core inner diameter: 76.2 mm / 3" ,
Outside diameter < 220 mm / 8.7", 500pcs/roll.
Application

Wine & Beverange tracking | Cosmetic&Beauty Products tracking

Warehouse shelf Management  | IT asset tracking, etc.

Application
Related industries
Smart Retail
Due to the rapid expansion, distribution and unique product management strategies of retail enterprises, they generally present logistics distribution such as multiple varieties of goods, small batches, high delivery frequency, multiple delivery points, fast delivery requirements and the need for complete information system support. These characteristics, make the entire logistics activities more complex, and the process of economic globalization has greatly extended the distribution of the supply chain in space. Global procurement, global sales, global services, multi-base collaborative production, etc., have extended the supply chain to a global scale. Correspondingly Logistics and distribution must also be carried out globally, and the complexity of logistics in space is increasing day by day. The vast extension of logistics systems and the complexity of logistics system planning make it a field that only experts can get involved in. Due to the unique identification method and technical characteristics of RFID, it can bring huge benefits to retailers, suppliers and customers; it enables the supply chain system to track the movement of goods more easily and automatically in an efficient way, allowing items to be realized True automated management.In addition, RFID also provides the retail industry with advanced and convenient data collection methods, convenient customer transactions, efficient operating methods, fast and insightful decision-making methods, and other benefits that barcode technology cannot replace. RFID applications in the retail industry mainly focus on five aspects: supply chain management, inventory management, in-store merchandise management, customer relationship management and security management.
Details
01 / 02
HealthCare Control
As the scale of hospitals and the scope of diagnosis and treatment continue to expand, in medical management centers, many hospitals still use traditional manual record management methods to manage consumables and surgical gowns. There are many types of consumables and confusing names, which can easily lead to false claims and missing records. Problems such as registration errors and difficulty in tracing items lead to heavy workloads for nurses, cumbersome work processes, and backlogs and shortages of valuable consumables, resulting in increased management costs. The core of smart medical care is "patient-oriented". It uses advanced Internet of Things technology and RFID to realize the interaction between patients and medical staff, medical institutions, and medical equipment. It gradually reaches informatization and realizes the control of every step in the operation. Real-time monitoring of data, including drug supervision, disease diagnosis and treatment, equipment management, etc.
Details
02 / 02
