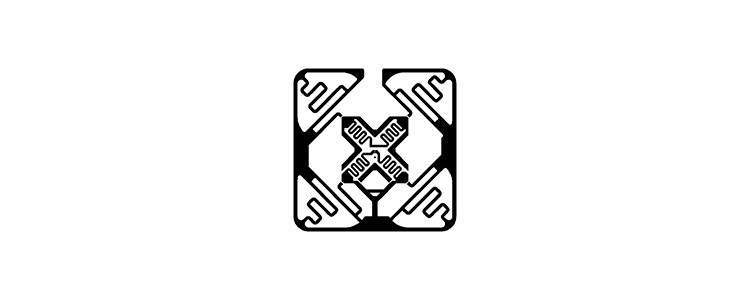

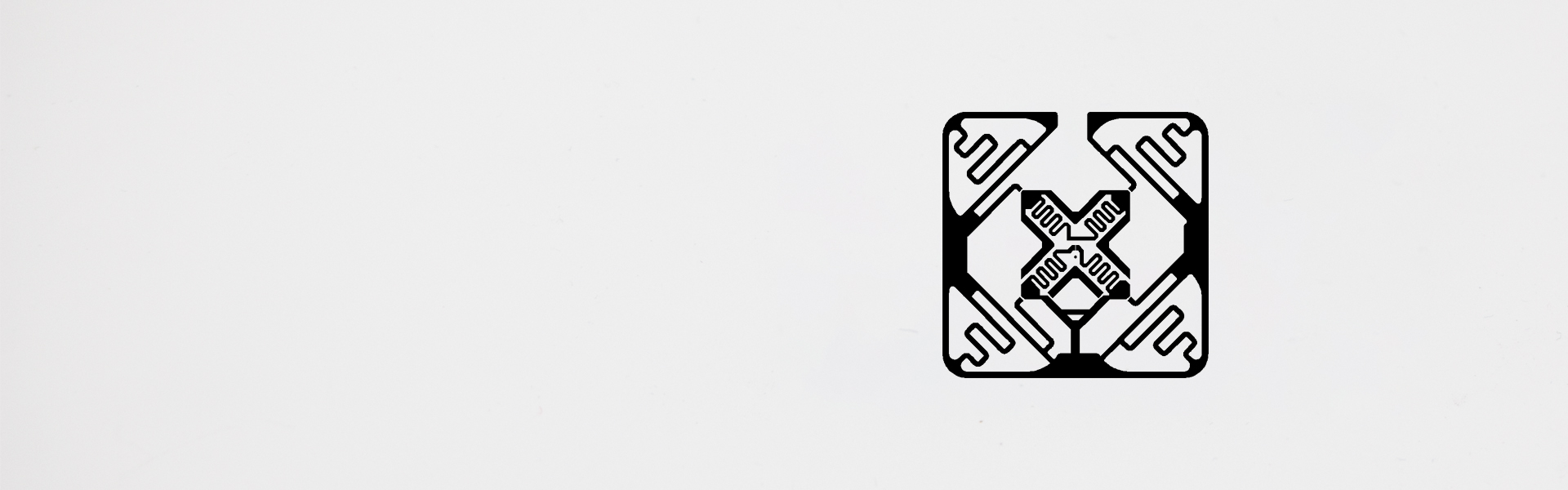

Physical Features | Antenna Size | 44 x 44 mm |
Wet Inlay/Label Size | 50 x 50 mm (customized) | |
Material | Coated Paper/PET/Fragile Paper | |
Working Temp | -40~+85℃ | |
Storage Temp | 23±3 ℃ | |
Storage Humidity | 50±15 %RH | |
RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
Chip Type | NXP Ucode 8/9 | |
Memory | U8:User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - 32 bits U9: User - N/A; EPC - 96 bits; TID - 96 bits; Access Passwords - N/A U9XE: User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - N/A |
|
Read Range(Fixed Reader) | 13 m | |
Other Features | Data Storage | > 10 years |
Re-write | 100000 times | |
Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
Package | Reel core inner dimension: 76.2mm / 3", Outside diameter < 220 mm / 8.7", 1000-5000pcs/roll, 4 rolls /carton |
|
Application | Apparel management | Logistics management Document management | Assets management, etc. |
