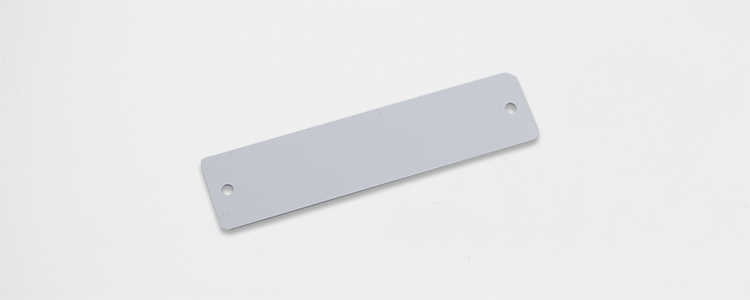

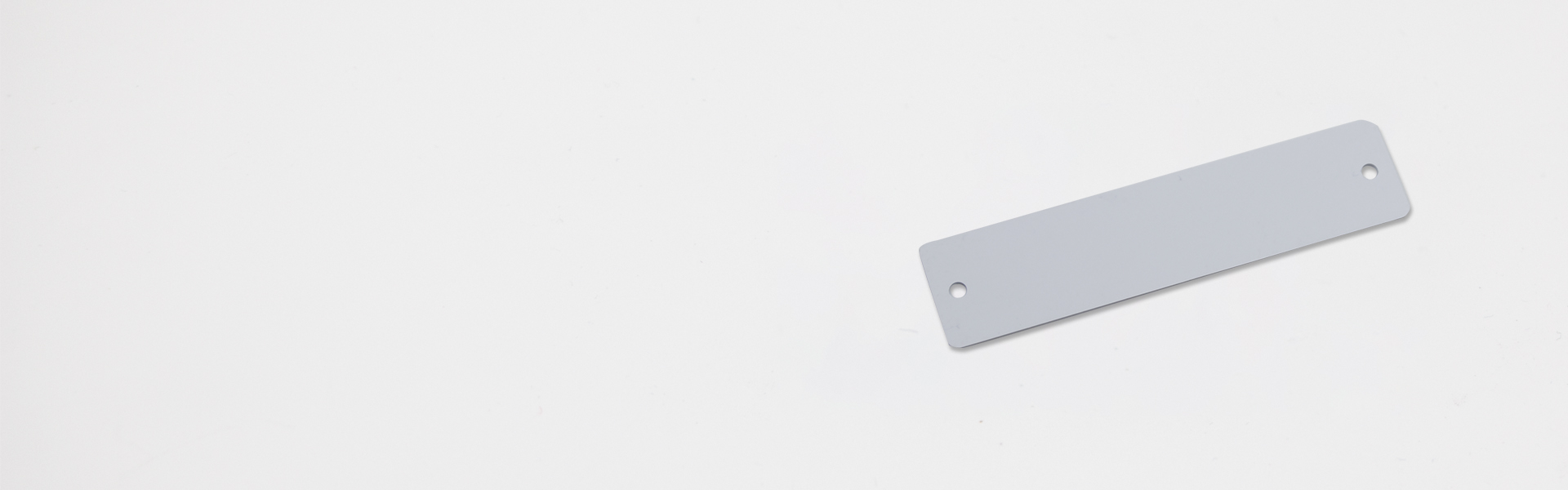

| RFID Features | Mdoel | RC9027-12 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj M830 | |
| Memory | User - N/A; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 20.6 m(67.6 ft) , on plastic; > 11.6 m(38.1 ft), on wood ETSI: > 26.0 m(85.3 ft) , on plastic; > 12.5 m(41.0 ft), on wood |
|
| Physical Features | Dimension | 85 x 20 x 0.9 mm / 3.35 x 0.79 x 0.04 in |
| Material | PET/PVC | |
| Weight | 2.3 g | |
| Color | White | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 150°C / -40°F to 302°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface), Rivet, Magnet, Screw |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 200 pcs / bag, 2 bags / box | |

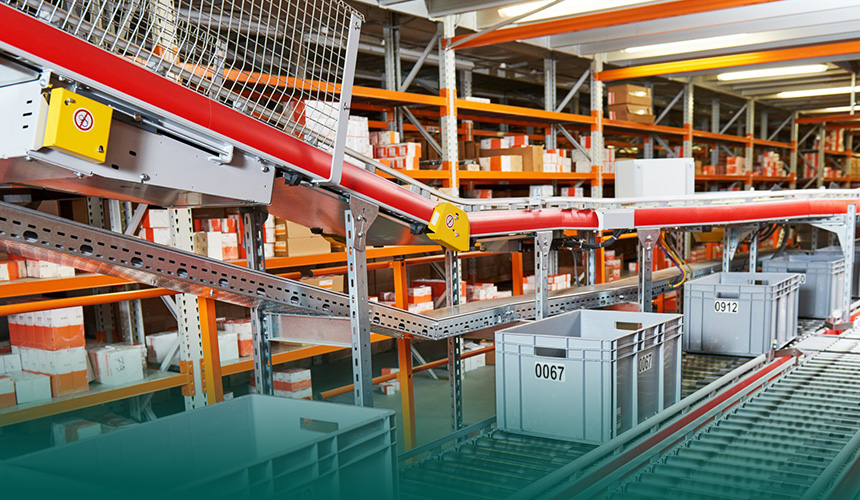

| Application | Pallet / Turnover box /Furniture |
